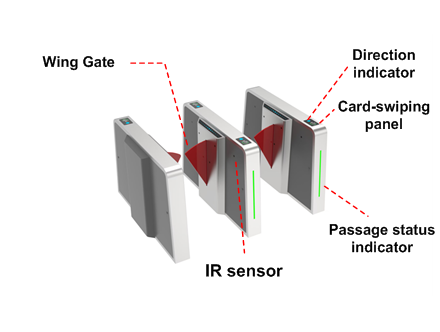

The housing of intelligent wing gate turnstile CPW-230HS is made of durable high-quality stainless steel. The driving module of the mechanism adopts top brand industrial-grade brushless DC servo motor and servo vector control technology, to ensure that the flaps move precisely, stably and quickly, with low power consumption, energy conservation and environmental protection.
Feature

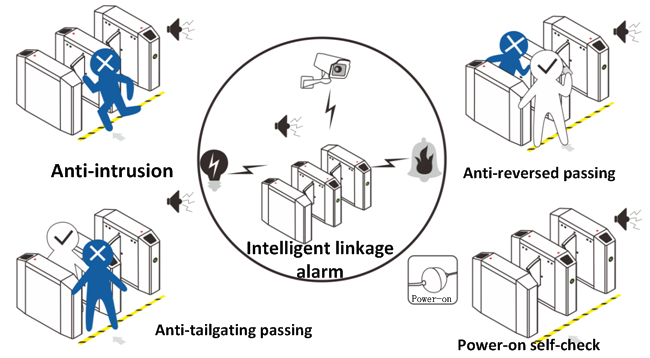

² By using 6 pairs of military level high-performance infrared sensors and exact algorithms, it can accurately detect the pedestrian’s passing position to achieve the purposes such as anti-tailgating, anti-reverse passing, anti-clamping and so on.
² Adopt multiple anti-clamping designs, such as infrared anti-clamping, machinery anti-clamping and advanced electric current detection anti-collision in turnstile industry, to maximally protect the personal safety of pedestrians.
² Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers.
Occasion Application

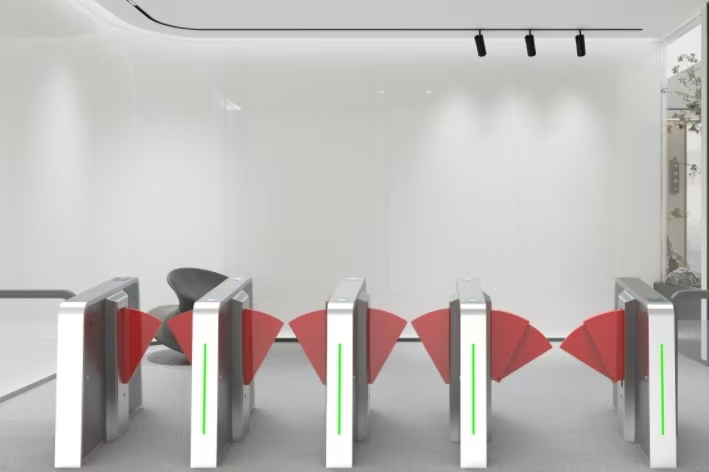

It is suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial institutions, senior clubs and other high-end indoor applications.
|
Structure Parameters |
|
|
Housing material |
304 grade stainless steel + galvanized plate |
|
Surface treatment |
Brushed finish (stainless steel) + baking vanish (galvanized plate) |
|
Flap material |
Organic glass |
|
Technical Parameters |
|
|
Normal throughput capacity |
30 ~ 45 people / min（depending on the condition of pedestrians） |
|
Evacuation throughput capacity |
60 people/min（depending on the condition of pedestrians） |
|
Opening speed |
0.3-0.6s |
|
Operation temperature |
﹣20℃~60℃ |
|
Electric Parameters |
|
|
Power supply |
100-240VAC，50/60Hz |
|
Rated power |
100W |
|
Input/ Output signal |
12-channel relay signal output / 8-channel dry contact signal input |
|
Communication interface |
RS485 / RS232；TCP/IP interface（customizable） |
|
Driving motor |
Industrial grade DC brushless servo motor |
|
Method of motor control |
Servo vector control |
（1）Within the allowed time, pedestrians have been detected to pass through the passageway in specified direction;
（2）Beyond the allowed time, nobody is detected to pass through the passageway.

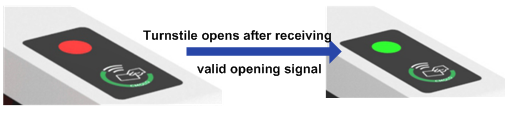

Ø Passing indication function:
Ø Self-check function when power on: The system will self-check routinely and alarm when power on and intelligently detect the key hardware and function. Find the hidden danger within the shortest time!

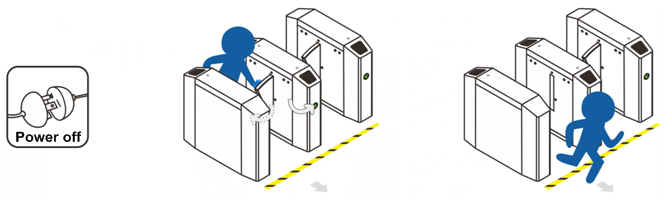

Ø Open gates when power off: When power off, the system will open the gates automatically so as to evacuate people conveniently, which meets the fire protection requirement.

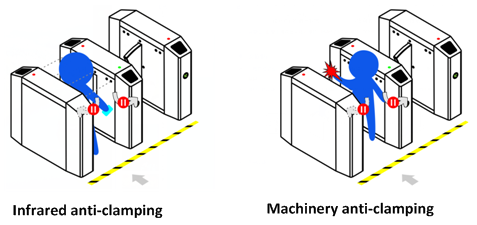

（1）Infrared anti-clamping: Install multi-pair of infrared sensors near the area where the gates move (the anti-clamping area). Once any person or object is detected within the anti-clamping area, the gates will open automatically to prevent injuring pedestrians.
（2）Machinery anti-clamping: During the closing process, when the gate encounters obstacle, it will open automatically to prevent injuring pedestrians; the impact force is within the safety range when gates close.
Ø Emergency escape function：Equipped with emergency escape control device, the system can automatically open the gates to evacuate pedestrians conveniently.
|
l Customized Functions Ø Built-in or external counter Ø TCP / IP communication |
l Materials Ø The material of housing can be 304 / 316 grade stainless steel, and the thickness of stainless steel can be customized. Ø The material of wings can be organic glass, Ø Fireproof PU soft wings and the color can be customized.
|
|
l Door open button Ø External door open button. Ø Install the door open button with wireless remote control. |
l System Integration Ø Integrate with access control system and built-in reader provided by customers. Ø Integrate with face recognition system, IC/ID card recognition system and visitor system. Ø Integrated ticketing system.
|
|
l Lane width Ø The lane width can be customized to be 900mm, but folded PU wings or wider housing width |
|
（1）The product design and specifications are subject to change without prior notice.
（2）Please contact us directly for special features customization.
