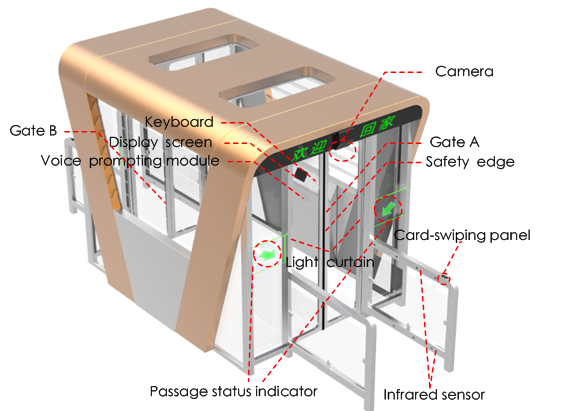

Intelligent unattended guard gate IPW-AB1000 is in beautiful shape and pursuits the perfect unit of arts, fashion and safety. The housing is made of durable high-quality spray painting cold-rolled sheet. The mechanism module adopts European DC brushless servo motor to make sure the gate can move quickly and accurately, with low-power consumption, energy conservation and environment protection.
² Two swing gates interlocking, when gate A/B opens, gate B/A closes.
² Support a variety of IC/ID identification, biological recognition and identity recognition technology, including face recognition, fingerprint identification, vein recognition etc. It is the first explicit validation.
² The headcount is conducted using 3 high-definition cameras combined with proprietary advanced algorithms, enabling high-accuracy counting. Each gate (A/B) is equipped with one camera for entry/exit number counting purposes. The third camera is installed at the equipment center to detect whether there’s anybody staying in the passageway.
² By using relevant algorithms to accurately count the number of pedestrians passing through. As the second implicit verification, pedestrians can continue to pass only when the card recognition is legal and the number of legal pedestrians matches the counted number. It can effectively prevent tailgating and illegal intrusion.
² The use of light curtain and safety edge has greatly improved the safety of the product.
² Multiple pedestrians can pass at the same time and pedestrians can carry luggage, bicycles, trolleys, electric bicycles and motorcycles, which can improve the passing efficiency.
² The built-in stainless steel keyboard and voice prompting module can provide users with the humanized interactive experience.
² Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), it is compatible with all kinds of access controllers.
Occasion Applications

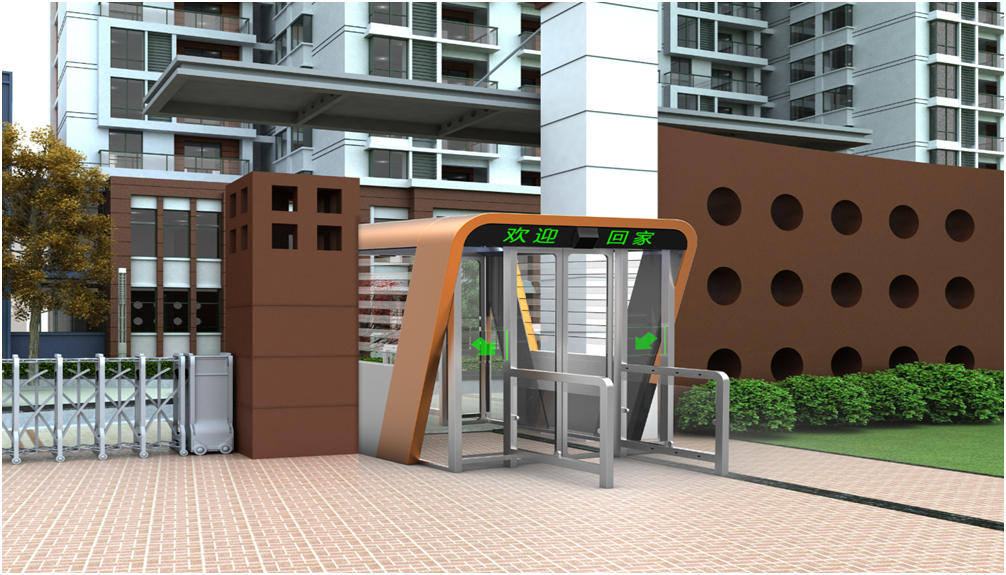

It is suitable for applications with large flow of people and high security requirements, such as residential area, government compound, scientific research base, financial institutes, etc.
Dimension Figure（Unit：mm）
|
Housing material |
|
|
Surface treatment |
Spray painting |
|
Gate material |
Tempered glass/acrylic |
|
Technical Parameters |
|
|
Normal Passing Speed |
60~80 people/min(depending on the condition of pedestrians） |
|
Evacuation Speed |
100 people/min（depending on the condition of pedestrians） |
|
Opening speed |
0.3-0.6s |
|
Working Temperature |
﹣20℃~60℃ |
|
Electric Parameters |
|
|
Power supply |
100-240VAC，50/60Hz |
|
Rated power |
650W |
|
Input/ Output signal |
12-channel relay signal output/ 8-channel dry contact signal input |
|
Communication interface |
RS485 / RS232；TCP/IP interface（customizable） |
|
Anti-clamping modes |
Infrared correlated light curtain, Safety edge |
|
Driving motor |
DC brushless motor |
|
Motor Control Mode |
Servo vector control |
l Basic Function
Ø Passing mode switching function：The entry and exit can be set independently【controlled mode】 /【 free mode 】/【 forbidden mode】.
Ø Automatic reset function: When standby, the turnstile will be open after receiving a valid signal. The gate will return to the hindering zero position automatically under the following situations：
（1）Within the allowed time, pedestrians have been detected to pass through the passageway in specified direction;
（2）Exceeding the allowed time.
Ø Self-recovery function: If the gates do not return to the hindering zero position due to human intervention, after revoking human intervention, they will return to the hindering zero position automatically.
Ø Memory function of passing requests: When more than 2 passing signals are given at the same time (including the same direction and opposite direction), the system will remember all the passing requests and finish them one by one. The number can be up to 255.
Ø Bringing visitors function: For users bringing relatives or friends, it is required to swipe the card and enter the bringing number of people on the keyboard at the first gate. After all the people have entered the first gate, if the number entered on the keyboard is consistent with the non swiping-card number of visitors identified by the system, the second gate will open to allow pedestrians to pass through.

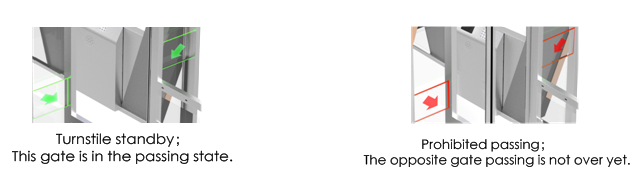

Ø Passage status indication: Passage status indicators are installed on both sides of A & B gates to indicate whether A / B gate can open after receiving the valid signal.
Ø Time sharing passage settings: Access restrictions can be set for A/B gates at different times, with multiple modes available for selection;
(1) Peak mode A: Gate A is normally open for passage; Gate B is controlled for passage
(2) Peak mode B: Gate B is normally open for passage; Gate A is controlled for passage
(3) Prohibited Passage mode: Gate A is prohibited for passage, and Gate B is prohibited for passage.
(4) A/B gates interlock mode: Gate A controlled passage, Gate B interlock, Gate B controlled passage, Gate A interlock
Ø Compatibility：Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers, IC / ID identification, biological recognition and identity recognition technology, including face recognition, fingerprint identification, vein recognition etc.
Security Design

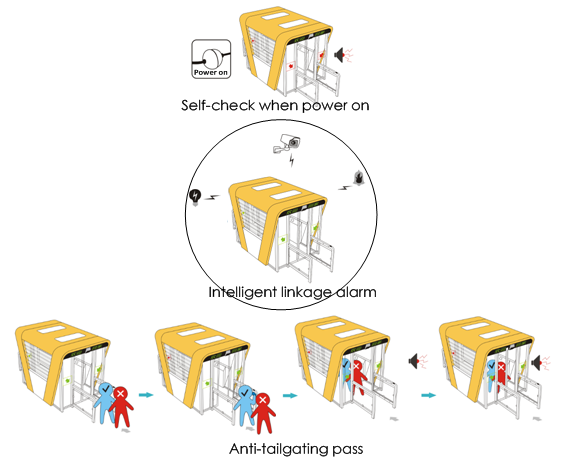

Ø Self-check function when power on: The system will self-check routinely and alarm when the power is on, and intelligently detect the key hardware and function. Find the hidden danger within the shortest time!
Ø Voice prompting function: Prompting users the system operating status (when closing gate, remind users to prevent being pinching); prompting whether users passing is legal or not and dissuading non swiping-card users to swipe the card for passing or withdraw from the passageway.
Ø Emergency call function: If the turnstile doesn’t open due to the abnormal or there is illegal intrusion, user can press the emergency button to inform security staffs at the first time.

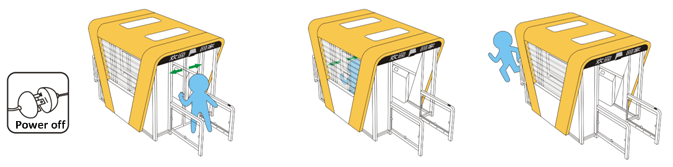

Ø Gate opening in power failure: The system will unlock the gate automatically when power is off. The gates can be manually pushed to be open and convenient for evacuation, which meets the fire protection requirement.
Ø Anti-clamping function:

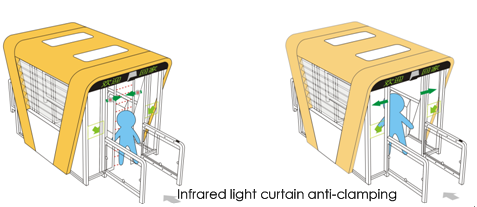

（1）Infrared light curtain anti-clamping: Multiple pairs of infrared light curtains are installed near the area where the gates are moving (anti-clamping area). During the closing process, once any person or object is detected within the anti-clamping area, the gates will automatically open to prevent clamping.

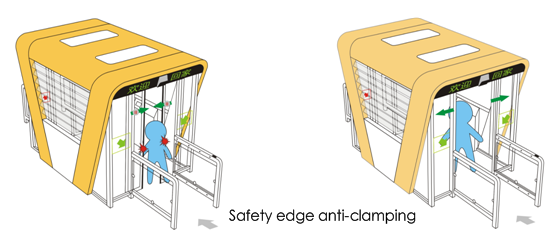

（1）Safety edge electric current detection anti-clamping: During the closing process, if users touch the safety edge sensing parts, the gates will automatically open to prevent clamping.

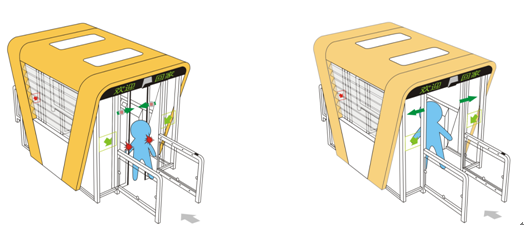

（1）Electric current detection anti-clamping: During the closing process, if the gate encounters obstacles, the main control board will detect current to control the gate’s action and the gate will automatically stop closing, then automatically open. The impact force is within the safety range when the gate is closing.
Ø Emergency escape function：Equipped with emergency escape control device, the system can automatically open the gates to evacuate pedestrians conveniently.
Ø Intelligent linkage alarm：Illegal traffic events can be linked with other alarm monitoring equipment: such as access control systems, video management systems.
|
l Customized Functions Ø Built-in or external counter. Ø TCP / IP communication function. |
l Materials Ø The material of housing can be 316 grade stainless steel, and the thickness of stainless steel can be customized. Ø The material of the gates can be organic glass.
|
|
Ø External door open button. Ø Install the gate open button with wireless remote control. |
Ø Integrate with access control system required by customers and built-in reader appointed by customers. Ø Integrate with visitor access control system.
|
