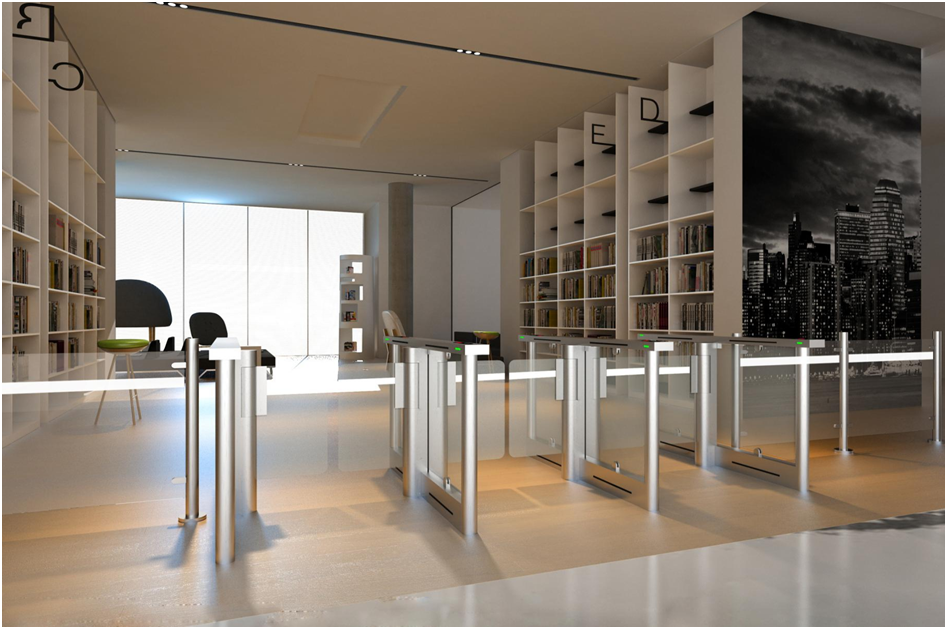

The speed gate turnstile CPW-322CS is quite slim in the industry at present. It has a lossless modular mechanism structure, an advanced servo control system and DSP+ARM motor control technology independently developed by CMOLO. The turnstile adopts DC brushless motor and exact positioning encoder, making the speed gate turnstile with advantages of long life service, accurate detection, high safety, fast, high stability, stable and silent running, etc.

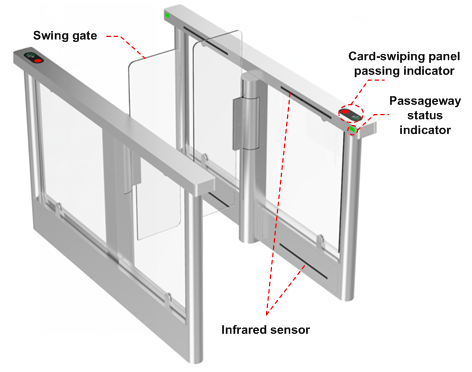

² By using more than 10 pairs of military level high-performance infrared sensors and exact algorithms, it can accurately detect the pedestrian’s passing position to achieve anti-tailgating, anti-reverse passing, anti-clamping and so on.
² Adopt multiple anti-clamping designs, such as infrared anti-clamping, machinery anti-clamping and advanced electric current detection anti-collision in turnstile industry, to maximally protect the personal safety of pedestrians.
² The wider lane is optional for carrying luggage and wheelchair access.
|

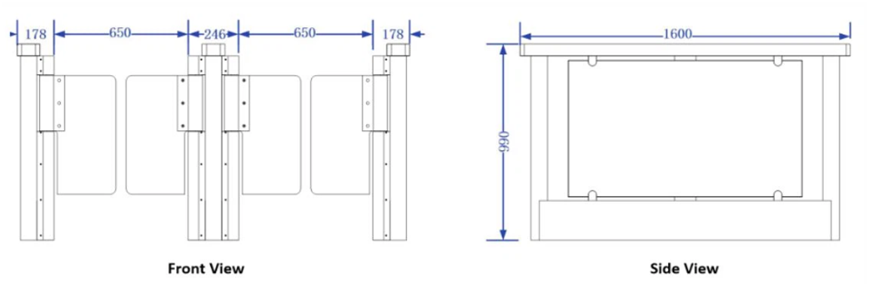

Housing Material |
304 Stainless Steel |
|
Surface Treatment |
Brushed |
|
Swing Gate Material |
Organic Glass |
|
Technical Parameters |
|
|
Normal Passing Speed |
30-45 persons/min（depending on the condition of pedestrians） |
|
Evacuating Speed |
60 persons/min（（depending on the condition of pedestrians） |
|
0.3-0.6 seconds |
|
|
±90° |
|
|
Working Temperature |
﹣20℃~60℃ |
|
Electrical Parameters |
|
|
Power Supply |
100-240VAC，50/60Hz |
|
Rated Power |
100W |
|
Input / Output Signal |
12-channel relay signal output / 8-channel dry contact signal input |
|
Communication Interface |
RS485 / RS232；TCP/IP Interface (customizable) |
|
Driving Motor |
Industrial grade brushless DC motor |
|
Positioning Method |
Use the encoder to position the swing gate accurately |
|
Motor Control Mode |
Use high-performance DSP chip |
l Basic Function
l Passing mode switching function：Both the entry and exit can be set to be【controlled mode】 /【 free mode 】/【 forbidden mode】independently.
Ø Automatic reset function: The turnstile will open the gates after receiving the valid opening signal when standby. The gates will return to the hindering zero position automatically under the following situation:
（1）Within the allowed time, pedestrians have been detected to pass through the passageway in specified direction;
（2）Over the allowed time, no pedestrians are in the passageway.
Ø Self-recovery function: The swing gates do not return to the hindering zero position because of human intervention. After revoking human intervention, the gate automatically returns to the hindering zero position.
Ø Automatic adjustment function: When the gate needs to be readjusted due to mechanical wear, the main control board can be used for automatic adjustment, which is precise and convenient.
Ø Memory function of passing requests: More than 2 passing signals are given at the same time (including the same direction and opposite direction), the system will remember all the passing requests and finish them one by one. The number can be up to 255.
Ø Passing indication function:

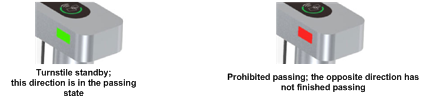

（1）Direction indicator: The direction indicator is installed on the top of the housing to indicate the legal passing direction.

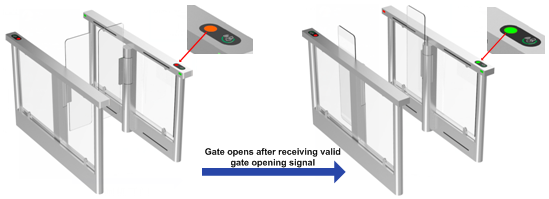

（2）Passing status indicator: It is installed inside the housing, indicating whether the swing gates can open or not after receiving the valid signal.
Ø Compatibility：Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers.
l Security Design
Ø Self-check function when power on: The system will self-check routinely and alarm when the power is on, and intelligently detect the key hardware and function. Find the hidden danger within the shortest time!

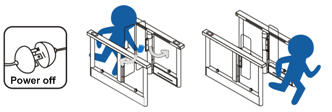

Ø Open gate when power off: Adopted with the leading mechanical structure by original creation, the system will automatically unlock the swing gates when power off. The gates can be manually pushed to be open and convenient for evacuation, which meets the fire protection requirement.
Ø Anti-clamping function：
（1) Infrared anti-clamping: Install multi-pair of infrared sensors near the anti-clamping area where swing gate is moving. Once any person or object is detected within the anti-clamping area, the swing gate will automatically stop moving. The swing gate will not continue to move until the person or object leaves the anti-clamping area.
（2）Machinery anti-clamping: The swing gate will automatically stop moving when it encounters obstacles; the impulse force is within the safety range when the swing gate is moving.
Ø Over-force feedback control function：When the gate is locked, it can support the impulse force within the safety range. If the impulse force is over the safety range, the gate can be manually pushed slowly so as to protect the mechanism and pedestrian, and then recovers automatically.
Ø Emergency escape function：Equipped with emergency escape control device, the system can automatically open the gate to evacuate pedestrians conveniently.

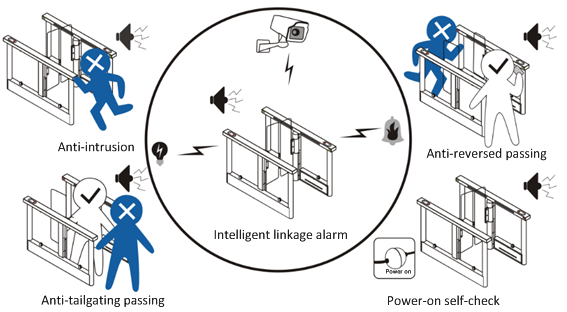

Ø Intelligent linkage alarm：Illegal traffic events can be linked with other alarm monitoring equipment: such as access control systems, video management systems.
|
l Customized Functions Ø Built-in or external counter Ø TCP / IP communication |
l Materials Ø The material of housing can be 316 grade stainless steel, and the thickness of stainless steel can be customized. Ø The material of swing gate can be organic glass, tempered glass, polycarbonate board and so on, and the color can be customized.
|
|
l Door open button Ø External door open button. Ø Install the door open button with wireless remote control. |
l System Integration Ø Integrate with access control system and built-in reader provided by customers. Ø Integrated visitor access control system. Ø Integrated ticketing system.
|
|
l Lane width Ø The lane width can be customized wider and the maximum can be achieved 900mm, but the lane length might need to be changed accordingly.
|
|
« Notes：
（1）The product design and specifications are subject to change without prior notice.
（2）Please contact us directly for special features customization.
