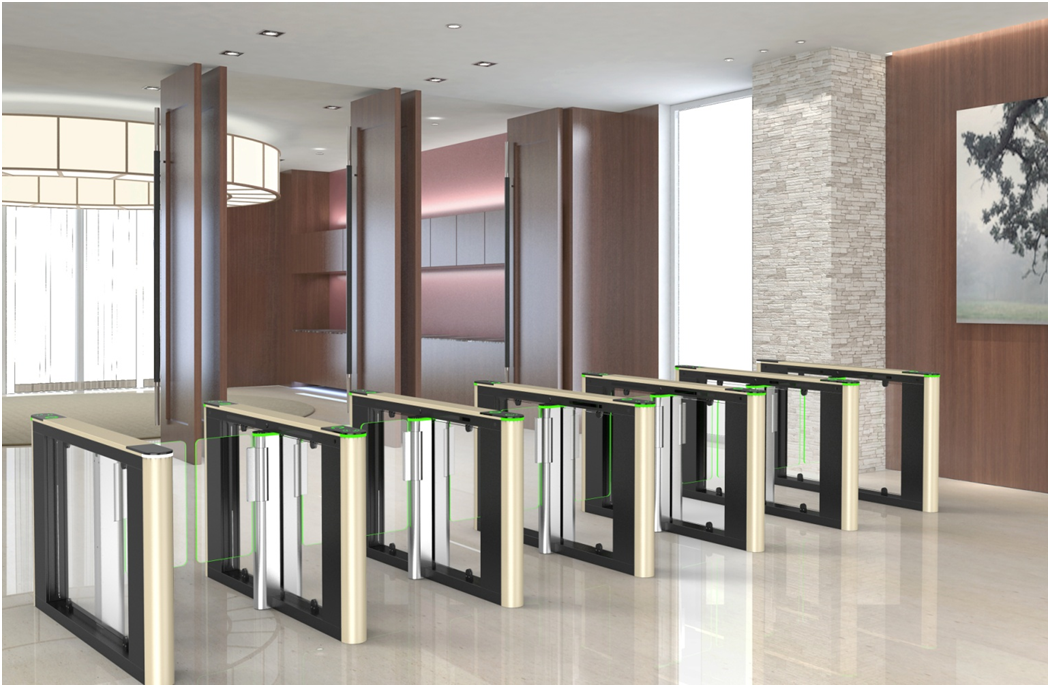

Intelligent speed gate turnstile CPW-168H with bridge type is transparent and bright, simple and elegant. The housing is made of durable stainless steel.
The driving modules of the mechanism adopt DC servo motor and multidimensional servo control technology so as to make sure the swing gate can move quickly and accurately, stably and quietly, with low-power consumption, energy conservation and environment protection.
² By using more than 6 pairs of military level high-performance infrared sensors and exact algorithms, it can accurately detect the user’s passing position to achieve such as anti-tailgating, anti-reverse passing, anti-clamping and so on.
² Adopt multiple anti-clamping designs, such as infrared anti-clamping, machinery anti-clamping and advanced electric current detection anti-collision in turnstile industry, to maximally protect the personal safety of users.
² The wider lane is optional for carrying luggage and wheelchair access.
|

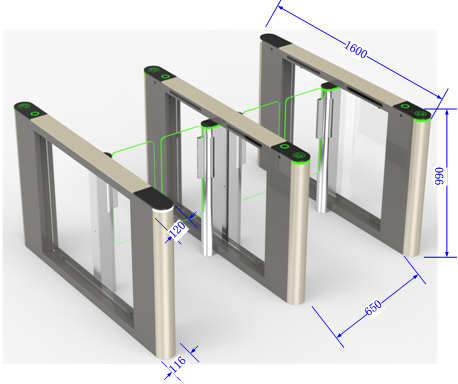

Structure Parameters |
|
|
Housing material |
Cold-rolled sheet |
|
Surface treatment |
Painted |
|
Swing gate material |
Organic glass |
|
Technical Parameters |
|
|
30 ~ 45 people/min（depending on the condition of users） |
|
|
Evacuating Speed |
60 people/min（depending on the condition of users） |
|
Gate opening speed |
0.3-0.6s |
|
Gate turning angle |
±90° |
|
Operating temperature |
﹣20℃~60℃ |
|
Electric Parameters |
|
|
Power supply |
AC100-240V，50/60Hz |
|
Rated power |
100W |
|
Input / output signal |
12-channel relay signal output / 8-channel dry contact signal input |
|
Communication interface |
RS485 / RS232；TCP/IP interface（customizable） |
|
Driving motor |
DC servo motor |
|
Motor control mode |
Multidimensional servo control technology |
l Basic Function
Ø Passing mode switching function：Both entry and exit can be set to be【controlled mode】 /【 free mode 】/【 forbidden mode】independently.
Ø Automatic reset function: The turnstile will open the gate after receiving the legal opening signal when standby. The swing gate will return to the hindering zero position automatically under the following situation：
（1）Within the allowed time, users have been detected in the specified direction passing the passage;
（2）Over the allowed time, no pedestrians are in the passageway.
Ø Self-recovery function: If the swing gates do not return to the hindering zero position because of human intervention, after revoking human intervention, the gate will automatically return to the hindering zero position.
Ø Automatic adjustment function: When the gate needs to be readjusted due to mechanical wear, the main control board can be used for automatic adjustment, which is precise and convenient.
Ø Memory function of passing requests: When more than 2 passing signals are given at the same time (including the same direction and opposite direction), the system will remember all the passing requests and finish them one by one. The number can be up to 255.
Ø Passing indication function:

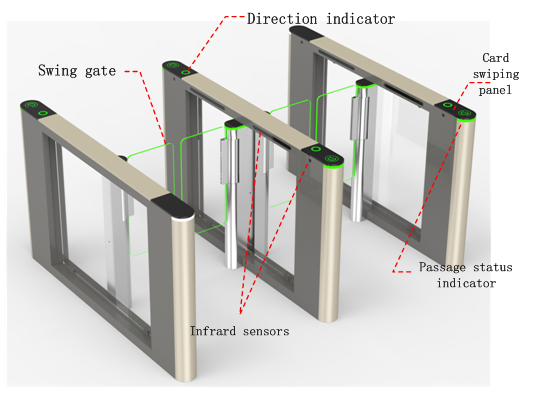

（1） Direction indicator: It is installed on the top of the housing to indicate the legal passing direction.
（2） Passing status indicator: It is installed inside the housing, indicating whether the swing gates can open after receiving the valid signal.
Ø Compatibility：Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers.
l Security Design
Ø Self-check function when power on: The system will self-check routinely and alarm when the power is on, and intelligently detect the key hardware and function. Find the hidden danger within the shortest time!
Ø Open gate when power failure: Adopted with the leading mechanical structure by original creation, the system will automatically unlock the swing gates when power off. The gates can be manually pushed to be open and convenient for evacuation, which meets the fire protection requirement.

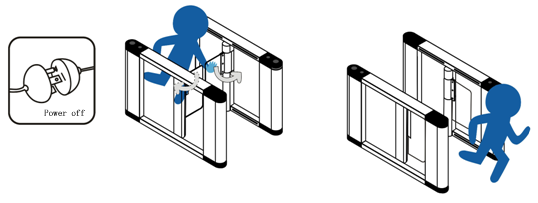

Note: The above picture is function diagram for reference only
Ø Anti-clamping function：

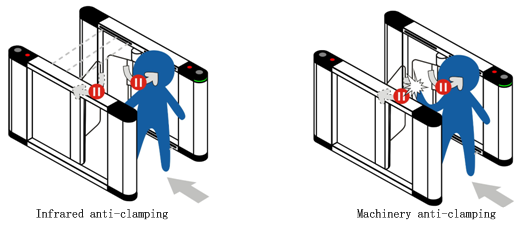

Note: The above picture is function diagram for reference only
（1) Infrared anti-clamping: Install multi-pair of infrared sensors near the anti-clamping area where swing gate is moving. Once people or thing is detected within the anti-clamping area, the swing gate will automatically stop moving; until the people or thing leaves the anti-clamping area, the swing gate will continue to move.
（2) Machinery Anti-clamping: The swing gate will automatically stop moving when the swing gate encounters obstacles; the impulse force is within the safety range when the swing gate is moving.
Ø Over-force feedback control function：When the gate is locked, it can support the impulse force within the safety range. If the impulse force is over the safety range, the gate can be manually pushed slowly so as to protect the mechanism and pedestrian, and then recovers automatically.
Ø Emergency escape function：Equipped with emergency escape control device, the system can automatically open the gate to evacuate pedestrians conveniently.

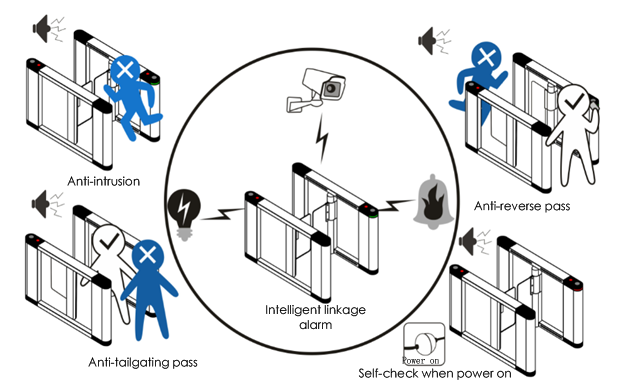

Ø Intelligent linkage alarm：Illegal traffic events can be linked with other alarm monitoring equipment: such as access control systems, video management systems.
Note: The above picture is function diagram for reference only
|
l Customized Functions Ø Built-in or external counter Ø TCP / IP communication |
l Materials Ø The material of housing can be 316 grade stainless steel, and the thickness of stainless steel can be customized. Ø The material of swing gate can be organic glass, tempered glass, polycarbonate board and so on, and the color can be customized.
|
|
l Door open button Ø External door open button. Ø Install the door open button with wireless remote control. |
l System Integration Ø Integrate with access control system and built-in reader provided by customers. Ø Integrate with access control system and visitor system, such as face recognition, IC / ID etc. Ø Integrate with ticketing system.
|
|
l Lane width Ø The lane width can be custom-made as larger size, and the maximum can be 900mm, but the length might need to be changed accordingly. （1）The product design and specifications are subject to change without prior notice. （2）Please contact us directly for special features customization. |
|
