CPW-222AS-HS
Home > Products > Full Height Turnstile >

CPW-222AS-HS



CPW-222AS-HS is semi-automatic type with dual passageways, turning 120° at a time. The housing is made of durable high-quality stainless steel. The mechanism modules adopt damper, with low noise, low-power consumption, energy conservation and environment protection.



Applications



It is suitable for military bases, state secret units, prisons, factories, residences and other occasions with high security needs.

Leave A Message Now



 Feature

²  Adopted with detachable structure, it is convenient for transit.

²  Without motor, the arms need to be manually pushed by the users to pass through after the system receives a valid opening signal.

²  With the mechanical anti-tailgating design, it can effectively achieve single-user throughput for each time with high safety and reliability.

²  With large hindering area, it is suitable for the place with smaller flow of people but higher security requirements.

²  The capabilities of water & dust resistance are strong. With powerful adaptability to environment, it's applicable for various outdoor and indoor occasions.

²  Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), it is compatible with all kinds of access controllers.

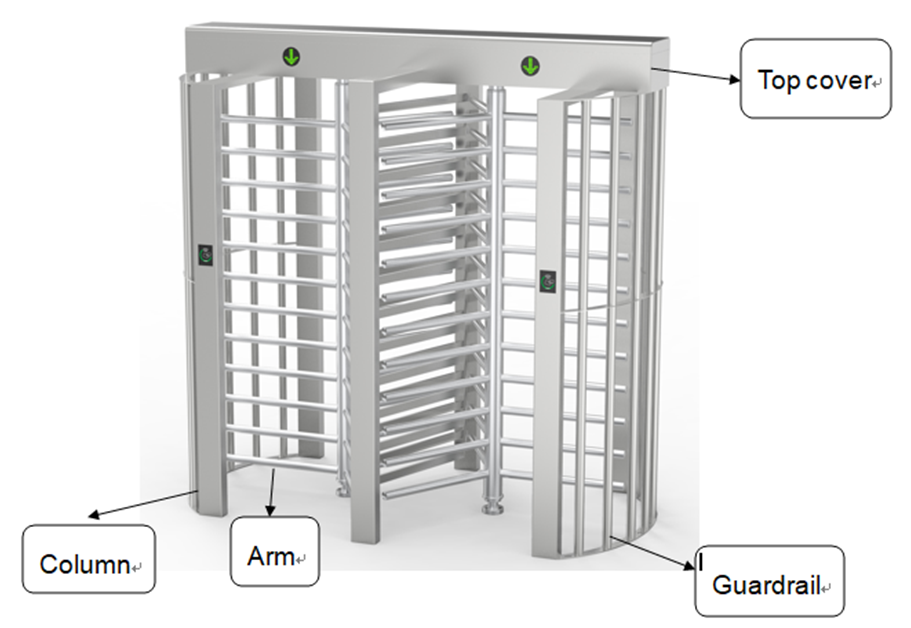

 Structure Chart

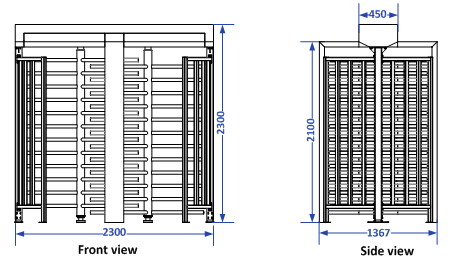

Dimension Figure（Unit: mm）



Product Parameters



Structure Parameters

Housing material

304 grade stainless steel

Surface treatment

Brushed finish

Arms material

304 grade stainless steel

Technical Parameters

Normal Passing Speed

20 ~ 35 people / min（depending on the condition of users）

Working temperature

﹣20℃~60℃

Electric Parameters

Power supply

AC100-240V，50/60Hz

Rated power

30W

Power Consumption

Standby status:

• Electric current: 0.75A

• Power: 22W

Working status:

• Electric current: 0.5A

• Power: 13W

Input / Output signal

6-channel relay signal output / 8-channel dry contact signal input

Communication interface

RS485 / RS232；TCP/IP interface（customizable）



 （1）The product design and specifications are subject to change without prior notice.

 （2）Please contact us directly for special features customization.
